Polyester Acoustic Panels


Wall, ceiling & bass trap acoustic panels for studios, home theatres, school classrooms, gymnasiums, halls and hospitality. Providing superb sound control and cool looks at an unbeatable budget price.

Polyester acoustic panels for New
Zealand studios & home theatres Black on White
White polyester panel with black facing cloth on one side - light weight, semi rigid with very smart looks. Therefore ideally suited to both wall panels and suspended ceiling panels in home studios, professional studios and home theatres. (as shown on home page studio photo).
Polyester acoustic panels for New
Zealand studios & home theatres White on White (Square Edge)
White polyester Acoustic panel with white facing cloth on one side - light weight, semi rigid and smart looks. Therefore ideally suited to both wall panels and particularly ceiling panels in cafes, bars, restaurants, schools, offices, studios and home theatres.
White Beveled Polyester acoustic panels for New
Zealand studios, cafe, bar, school and office ceilings White on White (Bevel Edge)
White polyester Acoustic panel with white facing cloth on one side - light weight, semi rigid and smart looks. Designed specifically for ceilings in restaurants, cafes, bars, schools, offices, studios and home theatres where an extra classy, finished look is required. The beveled edges face down into the room giving a less bulky look but all the advantages of a 50mm thick acoustic panel.
Black & White Beveled Polyester acoustic panels for New
Zealand studios, cafe, bar, school and office ceilings Black on White (Bevel Edge)
White polyester Acoustic panel with Black facing cloth on one side - light weight, semi rigid and smart looks. Designed specifically for ceilings in restaurants, cafes, bars, schools, offices, studios and home theatres where an extra classy, finished look is required. The beveled edges face down into the room giving a less bulky look but all the advantages of a 50mm thick acoustic panel.
Polyester acoustic panels for New
Zealand studios & home theatres Black on Black
Black polyester panel with black facing cloth on one side. Made from super tough blown polyester - ideal for demanding environments e.g. school gymnasiums, halls and classrooms. Suitable for both walls and ceilings. Very popular on black cafe ceilings requiring a more casual "industrial" look.
Polyester acoustic panels for New
Zealand studios & home theatres Black panel with 25mm Deep Pine Frame
Panels are now available in 25mm depth Black Polyestyer with a 10mm clear Pine frame to give your studio, home theatre or listening room a very stylish appearance.
Polyester acoustic panels with Pine Frames for New
Zealand studios & home theatres Black Panel with 50mm Deep Pine Frame
Panels are now available in 50mm depth Black Polyester with a 10mm clear Pine frame to give your room a very stylish appearance and extra absorption in the mid and bass frequencies.
Polyester acoustic panels for New
Zealand studios & home theatres White panel with 50mm Deep Pine Frame
Panels are now available in 50mm depth White Polyester with a 10mm clear Pine frame to give your room a very stylish appearance and extra absorption in the mid and bass frequencies.
ManufactureBonded plastic fibre @ 35 Kgs per M3 density. Light, no irritation, eco friendly, washable, fade resistant, fireproof & 100% NZ building regulation compliant. Easily cut with sharp scissors or knife. Due to their very light weight and semi rigid design they are the only acoustic product that can be easily fixed to or hung from walls and ceilings without sagging or deformation.
SizesCeiling & wall panels are w:580mm h:1150mm with square edges.
Corner bass trap panels are w:290mm h:1150mm with square edges.
ThicknessCeiling & wall panels are typically 25mm thick (50mm also available).
Corner bass panels are 50mm thick.
ColoursBack & White, Black, Grey & White as shown above. Panels are designed for commercial and industrial acoustic applications and may therefore have some very minor manufacturing wrinkles. However this in no way effects their performance.
Pack SizeStudio & home theatre acoustics pack includes eight 1150x290x50mm corner bass traps and five 1150x590x25mm wall/ceiling panels.
Additional panels and fittings may be added to this pack - see accessories section below.
Fire RatingA Rated - Non flamable
FixingMay be glued using contact adhesive or fixed with medium to large sized Velcro dots or strips. Where you don't want to mark walls or ceilings use removable hanging strips. Full instructions and guidelines for fixing and placement are included in all packs.
ApplicationCeilings and walls - 25mm panels (50mm optional).
Corners - 2 x 50mm bass trap panels for each corner (stacked 2 high).
CoverageSchool Classrooms & Commercial (using 50mm thick suspended ceiling panels) - approximately 36% of the total ceiling area for most school classrooms and commercial applications including restaurants, cafes, bars, offices and meeting rooms.
Studio - placement is the key to successful recording and mixing studio acoustics. The two key areas are early reflection damping (primary sonic reflections) and corner bass frequency trapping. Please see diagram below.
Home Theatre - similar requirements and placement to studios. The main difference is the side wall panel placement which is typically further back in the room mid way between the speakers and listening position.
  Polyester acoustic panels for New
Zealand restaurants, bars, fitness centres, offices and studios

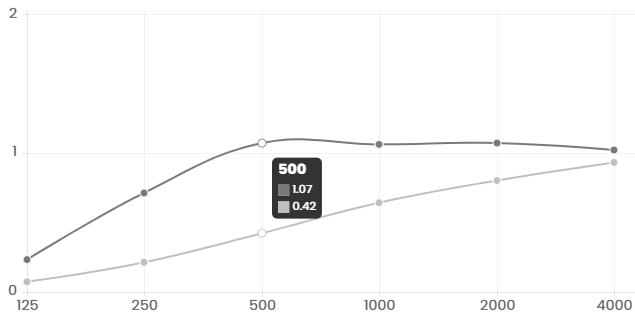

NRC25mm = 0.70; 50mm = 0.90
(NRC = Noise reduction coeficient. A measure of a panel's overall sound reduction/absorption ranging from 0=zero to 1=100% absorption)
  Hz      25mm     50mm
100    0.09       0.12
125    0.13       0.23
160    0.16       0.44
200    0.22       0.50
250    0.34       0.63
315    0.46       0.78
400    0.58       0.74
500    0.68       0.91
630    0.74       0.92
800    0.84       1.00
1000  0.91       0.99
1250  0.97       0.95
1600  0.96       0.96
2000  0.98       0.99
2500  0.86       0.94
3150  0.76       0.96
4000  0.66       0.95
5000  0.59       1.00

To View a detailed chart of NRC values for all NZ Acoustics
Ltd Products including the New & Innovative Super Bass Trap
and Mega Bass Trap plus a comparison to Foam Bass Traps
claimed and measured values download this PDF document
.

Weight25mm ceiling and wall panels - 0.5kg.
50mm ceiling and wall panels - 1.0kg.
50mm corner bass trap panels - 0.5kg.

Send us your room measurements and snaps of your walls and ceilings and we'll send you back free recommendations for the quantity and positioning of your acoustic panels.

E-mail us for prices & delivery: info@nzacoustics.com



Polyester Accessories


Acoustic cloud anchors, spacers and panels. These may be purchased separately or with above studio & home theatre acoustics pack.

Cloud
Anchor

manufacture
Make yourself an acoustic cloud - the most effcient method of absorbing reflected sound in a studio or home theatre.
Plastic anchors that screw into the back of a panel and allow easy suspension from the ceiling.
Suspending a panel from the ceiling by 25mm or greater increases noise absorbtion by 2-4 times. This is the same effect as corner bass traps where the gap behind the panel does most of the work. Use 5 anchors per panel, cut slits in the back of the panel 120mm in from the corners, one in the centre then hand screw in the anchors.
Cloud Anchor Pack includes: 10 x white plastic anchors (5 for ceiling and 5 for back of panel) and 10 x screw in Hooks - enough to supend 1 panel.
These anchors are designed for the 50mm thick panels. For 25mm thick panels use the spacers - see below.
  Acoustic Cloud Anchors

SpacerInexpensive method to offset panels 25mm from walls or ceiling.
35mm diameter x 25mm rigid, black, closed cell foam lightweight spacers with PSA (contact adhesive). This gap will at least double the sound absorption of your panels (five per panel glued 120mm in from the corners and one in the centre).
  Acoustic Panel Spacers

Black Edge TapeSelf Adhesive Black Fabric Tape
is available and may be stuck to the edge of Black & White panels where you require them to meld in with a black ceiling.

Velcro Hook & LoopSelf Adhesive Velcro Rolls
are available where you want the flexibility to easily replace individual wall or ceiling panels in high impact environments such as classrooms, bars and music venues.

Wall or Ceiling PanelExtra 1150x580mm budget polyester panels, white with black facing cloth either 25mm or 50mm thick.

Bass Trap PanelExtra 1150x290mm budget polyester bass trap panels, white with black facing cloth 50mm thick. Typically stacked two high across corners of the room to absorb bass frequencies and reduce "boominess" of rooms.
